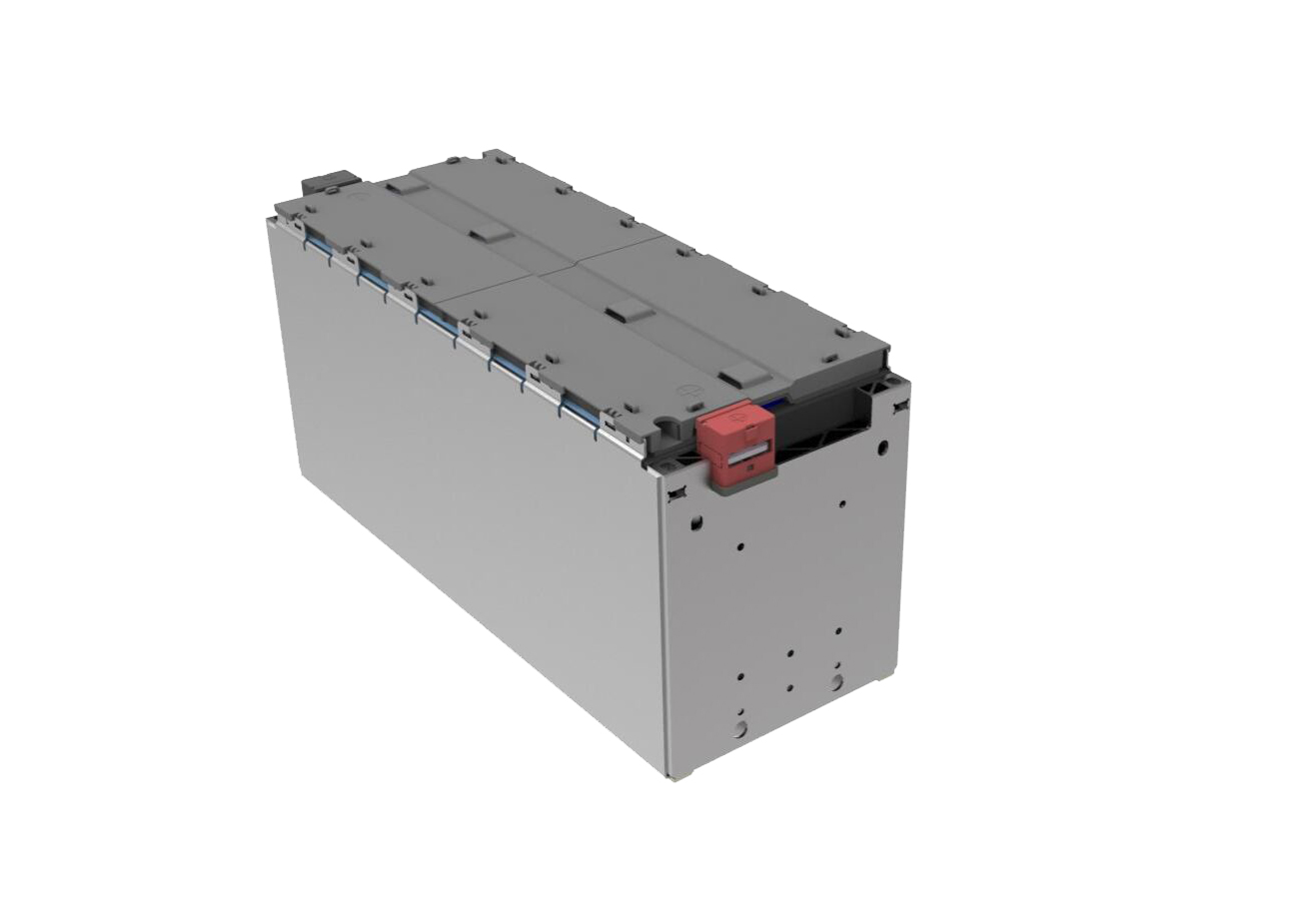

Lithium-ion battery module for use in electric powered mobilities. The system consists of Lithium-Ion-Cells, connected in series to reach the system voltage and in parallel to achieve greater capacity . The battery system voltage and capacity can be verified by different combination of modules.
| No. | Items | EP-LFP176Ah STANDARD MODULE | Note | |||
| MSXX2-35.2V176A | MSXX2-48V176A | MSXX2-51.2V176A | ||||
| 176Ah1P11S | 176Ah1P15S | 176Ah1P16S | ||||
| 1 | Nominal voltage(V) | 35.2 | 48 | 51.2 | ||
| 2 | Operating voltage(V) | min | 27.5 | 37.5 | 40 | T＞0℃ |
| 3 | max | 40.15 | 54.75 | 58.4 | ||
| 4 | Nominal capacity(Ah) | 176 | 176 | 176 | 1/3C，100%DOD | |
| 5 | Nominal energy（KWh ） | 6.195 | 8.448 | 9.011 | 1/3C，100%DOD | |
| 7 | Group mode | 1P11S | 1P15S | 1P16S | ||
| 8 | End of life residual capacity (Ah) | 140.8 | 80%DOD | |||
| 9 | Module weight（Kg） | 45.97 | 62 | 66.5 | ||
| 10 | Maximum continuous charge current（A） | 176 | ||||
| 11 | Maximum continuous discharge current（A） | 176 | ||||
| 12 | Maximum pulse discharge current（≤180s）（A） | 352 | ||||
| 13 | SOC operating range（%） | 10~100 | ||||
| 14 | Insulation requirements(MΩ) | ≥20 | ||||
| 15 | Module cooling method | Natural cooling | PTC heater or water cold plate | |||
| 16 | Module heating method | No | ||||
| 17 | Shipping capacity (SOC) | 50%±5 | SOC is consistency in the same batch | |||

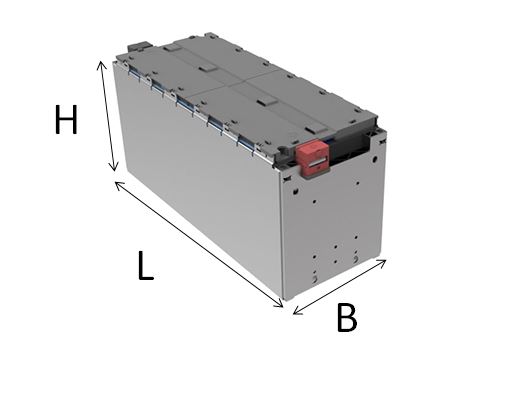

| 18 | Dimension L mm | 695.2 | 909.6 | 963.2 | Without bracket | |
| Dimension B mm | 180 | 180 | 180 | |||
| Dimension H mm | 225 | 225 | 225 | |||
