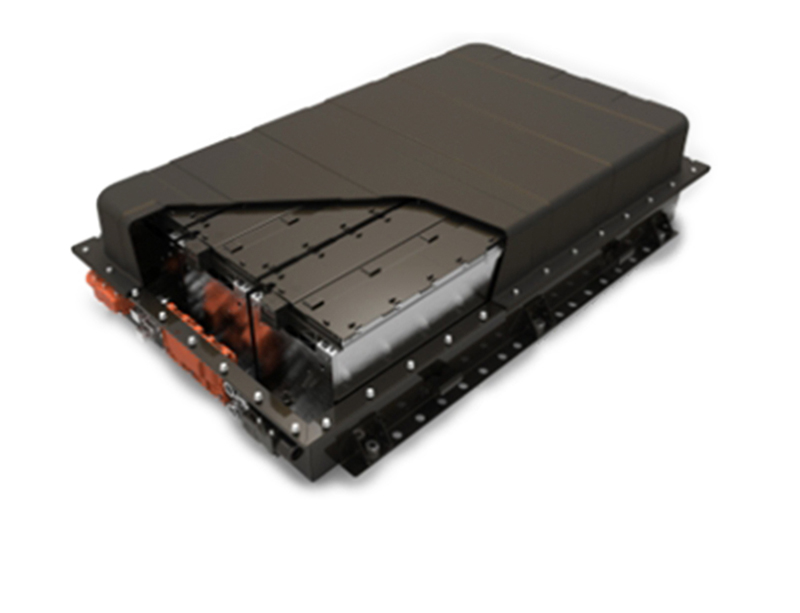

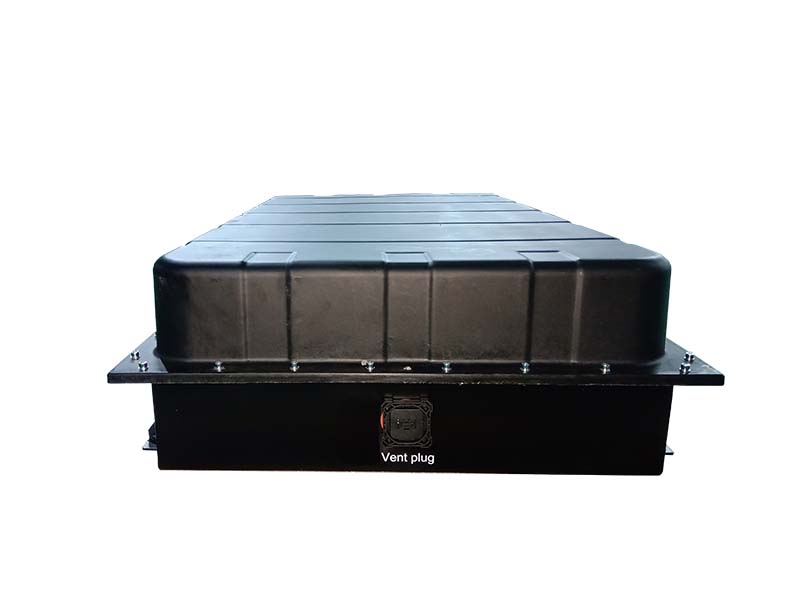

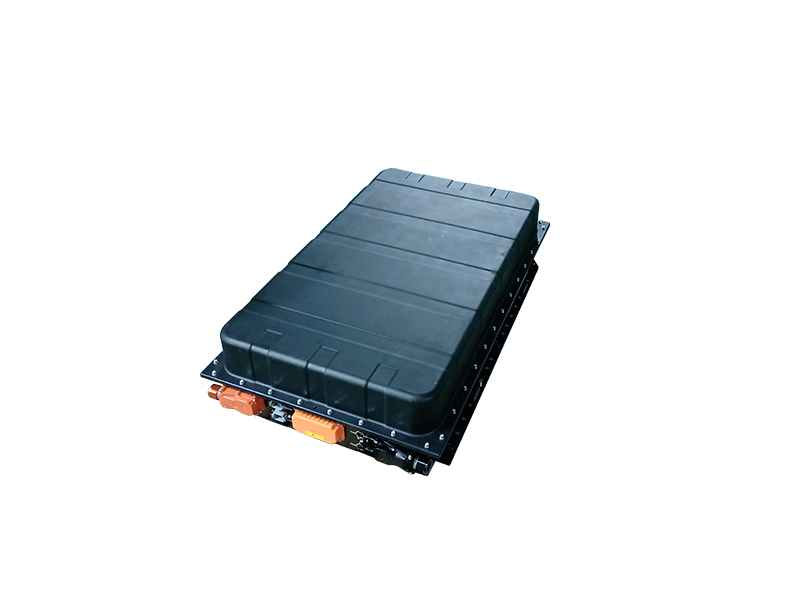

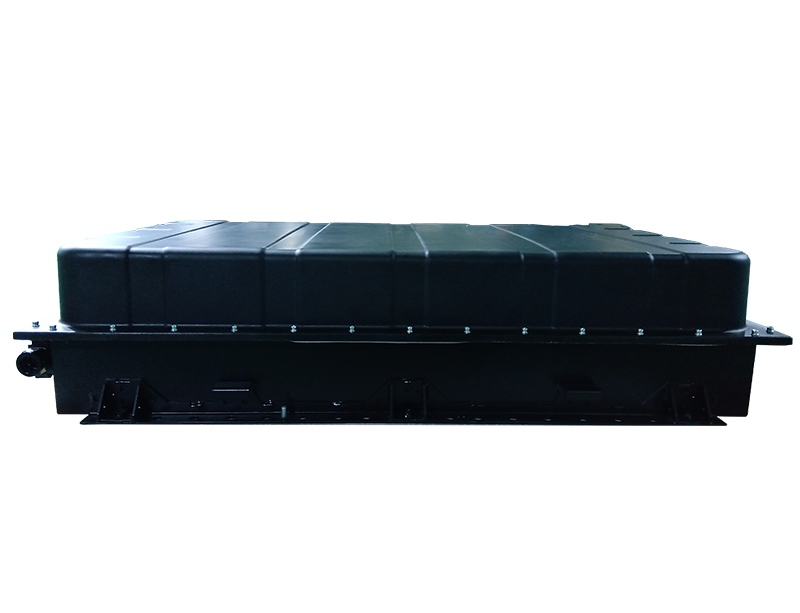

Lithium-ion battery pack for use in electric powered mobilities. The system consists of Lithium-Ion-Cells, connected in series to reach the system voltage and in parallel to achieve greater capacity. The battery system voltage and capacity can be verified by different combination of packs. The pack contains a fuse and a slave BMS.High security and provide cell voltage and temperature to master BMS.
| Items | EP-LFP 206Ah STADARD PACK | Note | |||
| PSXX2-154.56V206A | PSXX2-144.9V206A | PSXX2-106.26V206A | |||
| 206Ah1P48S | 206Ah1P45S | 206Ah1P33S | |||
| Nominal voltage(V) | 154.56 | 144.9 | 106.26 | ||
| Operating voltage(V) | min | 96 | 90 | 66 | |
| max | 175.2 | 164.25 | 120.45 | ||
| Group mode | 1P48S | 1P45S | 1P33S | ||
| Nominal energy（KWh ） | 31.84 | 29.85 | 21.89 | 25±2℃,1/3C，100%DOD | |
| Available energy（KWh ） | 31.20 | 29.25 | 21.45 | ||
| Weight（Kg） | 233.5±7 | 219.4±7 | 205.3±7 | ||
| Energy density(Wh/Kg) | ≥118 | ||||
| Nominal capacity(Ah) | 206 | 25±2℃,1/3C，100%DOD | |||
| End of life residual capacity (Ah) | 164.8 | 100%DOD，1C/1C，1000 cycles, residual capacity≥80% initial capacity，@25℃ | |||
| Maximum continuous charge current（A） | 206 | ||||
| Maximum continuous discharge current（A） | 206 | ||||
| Maximum pulse charge current（≤10s） | 309 | ||||
| Maximum pulse discharge current（≤180s）（A） | 412 | ||||
| Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |||
| Humidity range | 5%～95% | ||||
| Self-discharge | <3% | 25±2℃,50%SOC | |||
| Storage temperature(℃) | -30 ～ +60 | ||||
| SOC operating range（%） | 20～100 | ||||
| Insulation requirements(MΩ) | ≥20 | 1000V DC，High voltage output to battery shell, at the normal temperature and humidity | |||
| Protection class | IP68 | ||||
| Module cooling method | Natural cooling | PTC heater or water cold plate | |||
| Module heating method | NO | ||||
| Shipping capacity | 50%±10% | SOC is consistency in the same | |||

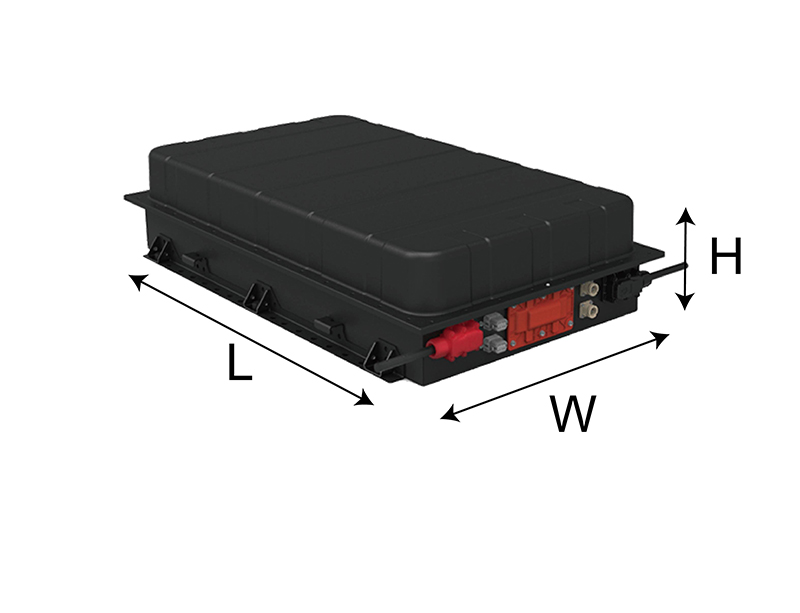

| Dimension L mm | 1060 | 1010 | 820 | ||
| Dimension B mm | 630 | 630 | 630 | ||
| Dimension H mm | 240 | 240 | 240 | ||
