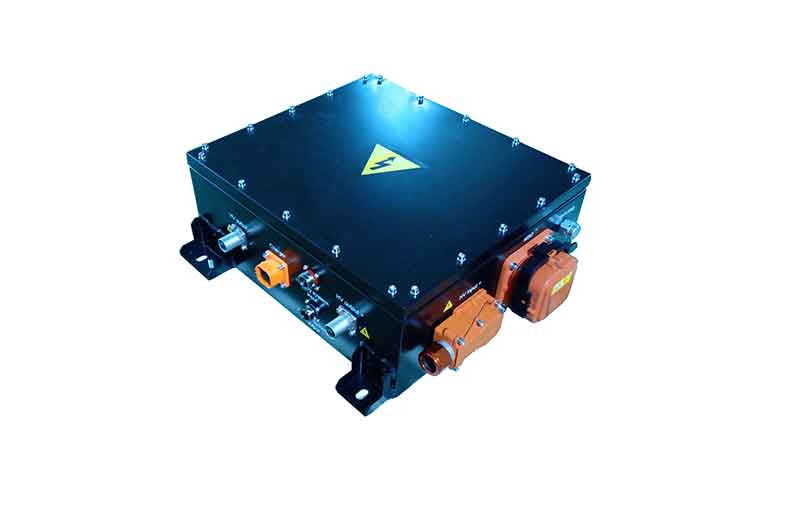

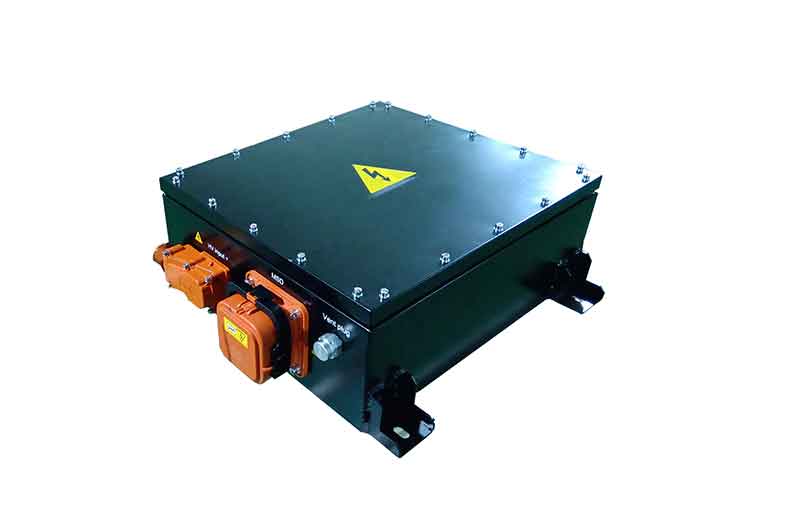

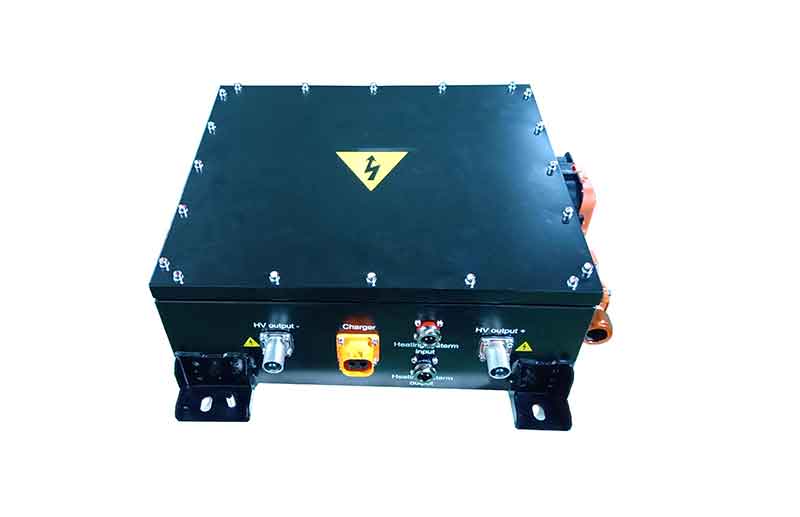

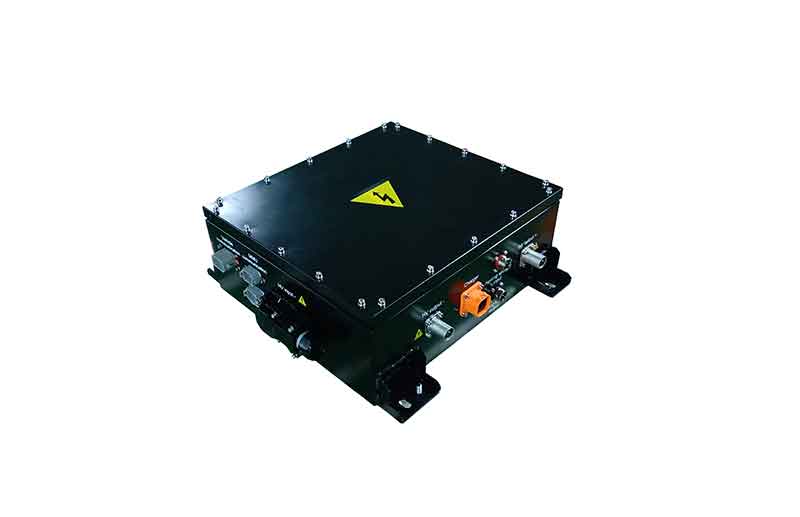

Power distributor unit designed for EV，known as “electric vehicle high voltage power distributor box” ,Electric vehicle power distribution box", "Electric vehicle power unit" and "Electric vehicle safety box", is an important part in EV.It supports function converting and power distribution to every systematic unit. Such as motor control unit, battery management system, charging system, heating system,etc. PDU can also provide short circuit protection, current leaking protection and IP protection.Battery lifespan is longer and maintenance cost of EV is reduced with this unit (Easy maintenance, convenient installation, space saving and reliable electric connection).
Features
Metal shell, flexible production, and low cost, good protective performance, light weight, good structural strength.
Master bus inside the box.
Designed with busbar solution make the product with low temperature rise, good heat dispassion,electric conductive better and installation easily.
Connector solution developed by busbar has been applied;meets in this products, it meet most customer request.
This product can be designed and manufactured and manufacture according to customer's requirements.
|
FUNCTIONAL MODULE |
COMPONENT DESCRIPTION |
|
Power distribution |
Busbar component design, fast heat dissipation, high energy transmission efficiency |
|
Power Distribution Protection |
Protection with fuse,electric living parts separated with insulation material ,BMS |
|
Power Distribution control |
Power distribution control reaiized by high voltage relay,it make energy conversion more reliability and safety |
|
Current and voltage data collection |
Collector, auxiliary equipment use more safety |
|
Precharge |
Power resistance, anti surge, pulse |
|
Communication function |
CAN communicate with bus and charger in real-time. |
|
Insulation detection |
Electric insulation detection, the leakage current can be cut off quickly |
|
INTERFACE (OPTIONAL) |
PARAMETER |
|
Signal voltage |
9~32V |
|
Battery interface |
240A |
|

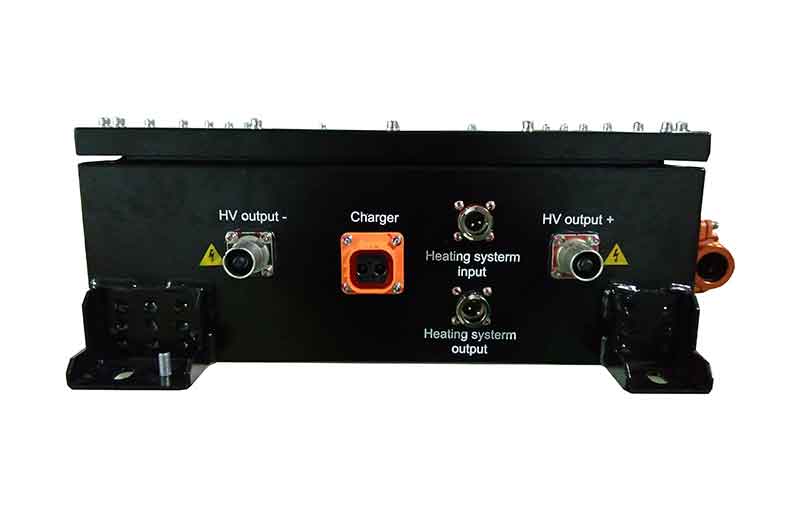

Charging interface |
Slow charge（380V 25A） |
|

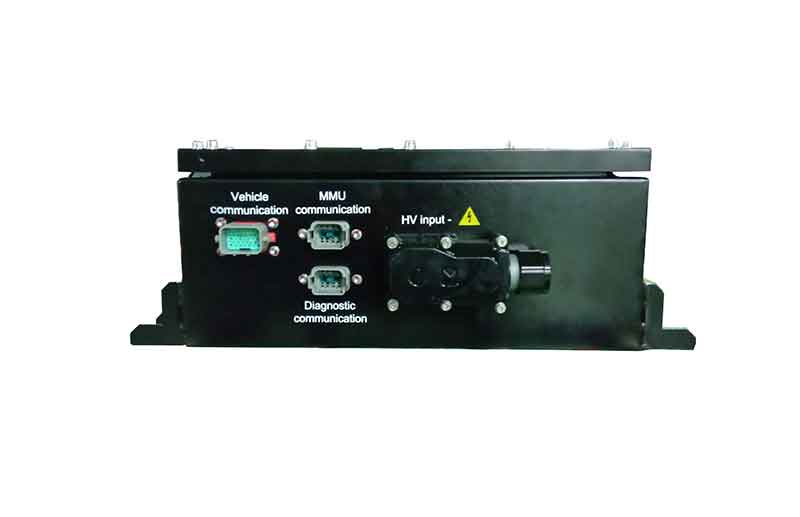

Communication interface |
to battery pack |
|
Communication interface |
to VCU and charger |
|

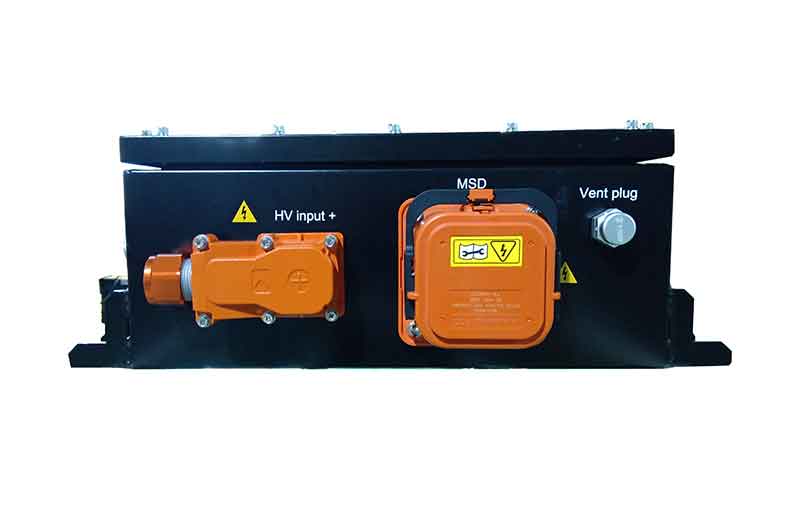

MSD |
350~500A |
|
Motor interface |
240A |
|
Heating system interface |
5~20A |
|
Auxiliary interface |
0~10A |
