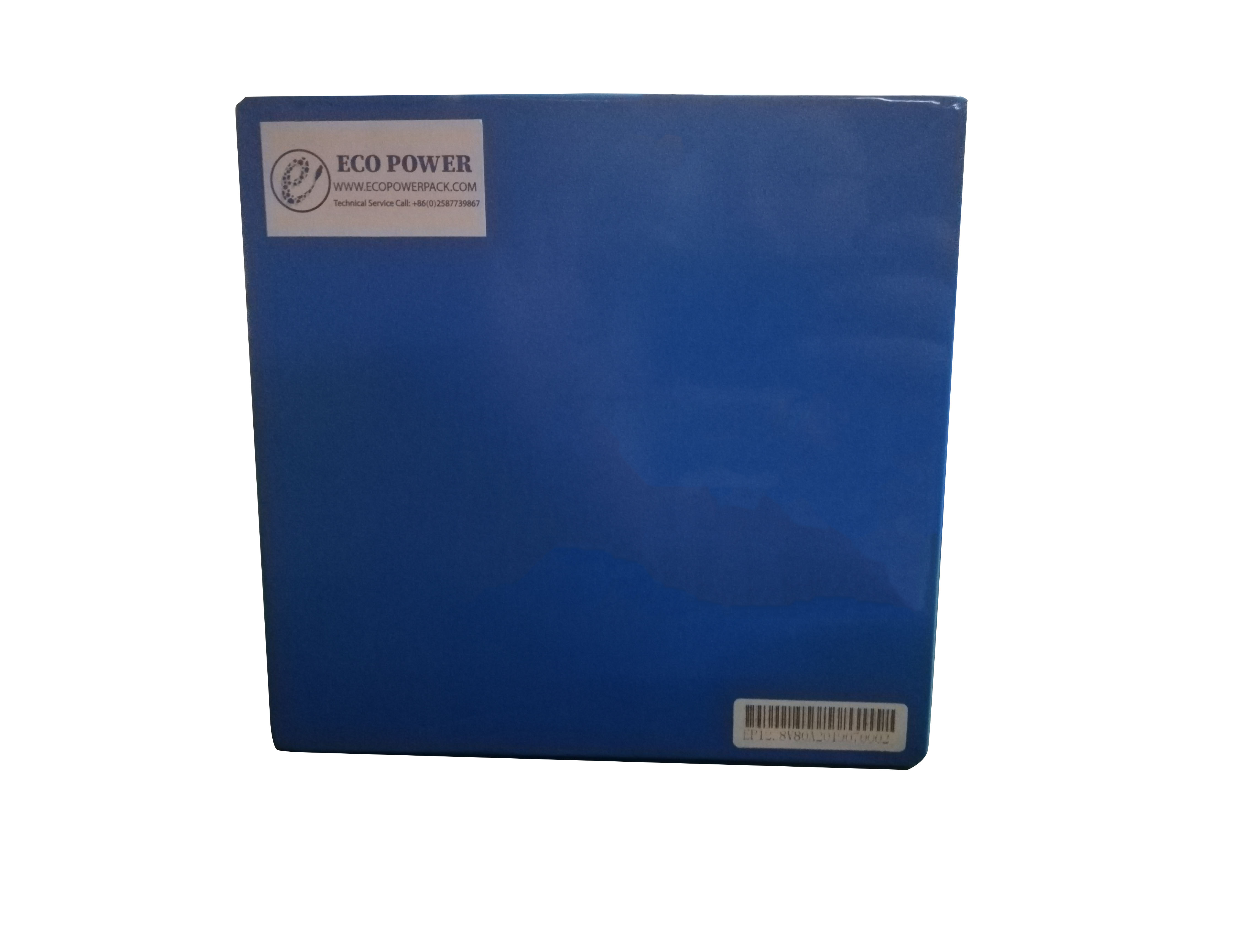

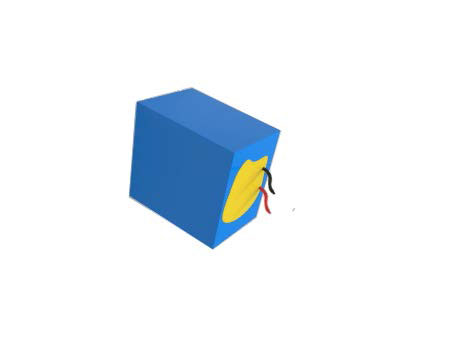

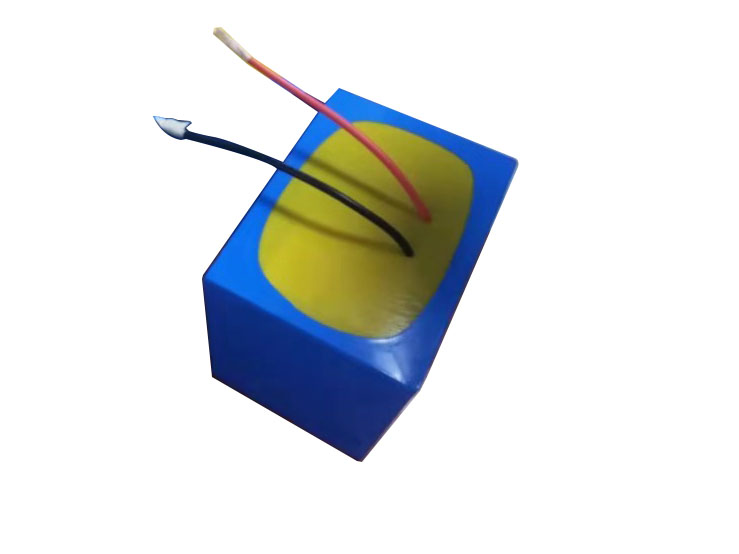

EP-12V80Ah Lithium-ion Battery

I WANT IT

PRODUCT DETAILS

No.	Item	Specification/Parameter	Note
1	Nominal Voltage (V)	12.8
2	Min Operation Voltage (V)	10
3	Max Operation Voltage (V)	14.6
4	Group mode	1P4S
5	Available energy (Wh)	≥1024
6	Module Weight (Kg)	10
7	Energy density/(Wh/Kg)	100
8	Nominal capacity(Ah)	80	25±2℃,1/3C，100%DOD
9	End of life residual capacity (Ah)	64	Residual capacity≥80% initial capacity，@25℃
10	Maximum continuous charge current (A)	15
11	Maximum continuous discharge current (A)	20
12	Maximum plus discharge current（A）	20
13	Over current discharge protection	50A
14	Shipping consistency (mv)	30
15	Humidity range	10%～95%
16	Self-discharge	<3%	Count after fresh cell need Standard Charge to 50% SOC and storage at 25±2°C for 3 month
17	Storage temperature (℃)	-30 ～ +55
18	Recommended SOC Operating range (%)	10～90
19	Module cooling method	Natural cooling
20	shipping capacity (SOC)	50%±20%
