The actual system components will be set by final delivery.
This battery system requires the specific Li-ion battery charger. The customer needs to procure separately
It is required to install and operate the system in a indoor environment with temperature about 30~35℃
The system must be charged with the specified lithium Battery compactible charger
Item | Parameters | |
Battery Cell | Battery Model | LiFePO4/3.2V100Ah |
Nominal Capacity | 100Ah | |
Nominal Voltage | 3.2V | |
Internal Resistance(1kHz AC) | 0.2-0.6mΩ | |
Operating Voltage | 2.5-3.65V | |
Standard Currents for Charging and Discharging | 30A | |
Max. Continuous Discharging Current | 90A | |
48V100AH Battery System | Nominal Voltage | 51.2V |
Nominal Energy( 20±5℃0.3C@100%DOD) | 5.12kWh | |
Battery System Configuration | 16 serial of single battery cells | |
Battery System Operating Voltage Range | 40.0V~57.6V | |
Floating Charging Voltage | 53~54.4V | |
System Maximal Charging Current | 20A | |
System Maximal Discharging Current (short pulse) | 80A~90A | |

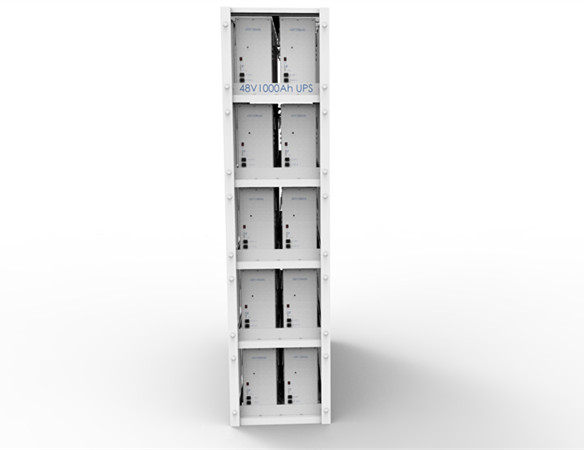

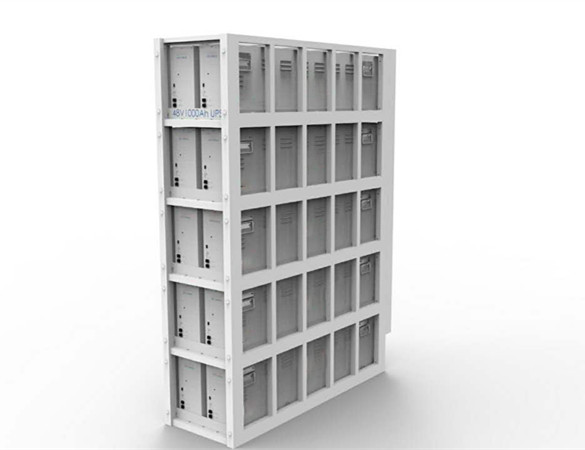

48V1000AH Battery System | Nominal voltage | 51.2V |
Nominal Energy(20±5℃0.3C@100%DOD) | 51.2KWH | |
Battery System Configuration | 10 parallel of 48V100AH packs | |
Battery System Operating Voltage Range | 43.2V~56.8V | |
Floating Charging Voltage | 53~54.4V | |
System Maximal Charging Current | 200A | |
System Maximal Discharging Current | 800A~900A | |

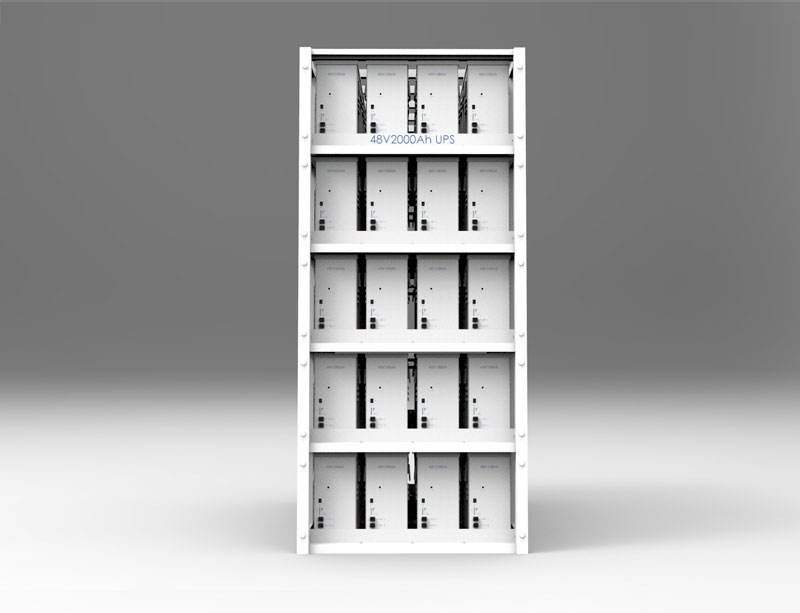

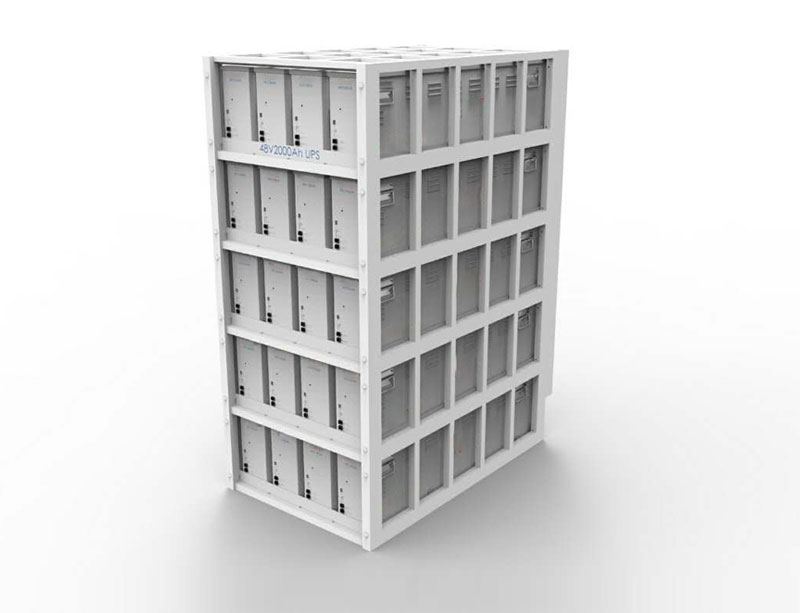

48V2000AH Battery System | Nominal voltage | 51.2V |
Nominal Energy(20±5℃0.3C@100%DOD) | 102.4KWH | |
Battery System Configuration | 20 parallel of 48V100AH packs | |
Battery System Operating Voltage Range | 43.2V~56.8V | |
Floating Charging Voltage | 53~54.4V | |
System Maximal Charging Current | 400A | |
System Maximal Discharging Current | 1600A~1800A |
