| Battery for BESS BATTERY Stop&Start | ||
| Type/Model | 12V60Ah | 12V80Ah |
| Nominal Capacity(Ah) | 60 | 80 |
| Charging Voltage(v) | 14.6 | 14.6 |
| Nominal Voltage(v) | 12.8 | 12.8 |
| Cut off Discharge Voltage(v) | 10 | 10 |
| Max Continuous Discharging Current(A) | 60 | 80 |
| Maximum Pulse Discharging Current （30S）(A) | 500 | 500 |
| Max Continuous Charge Current(A) | 30 | 40 |
| Cycle Life @ 80% Depth of Discharge(Cycle) | >2000 times | >2000 times |
| Dimensions (LXWXH)(mm) | 260*175*225 | 260*175*280 |
| Weight(kg) | 11±0.5 | 13±0.5 |
| Charge Temperature(℃) | 0～45 | 0～45 |
| Discharge Temperature(℃) | ﹣25～55 | ﹣25～45 |
| Storage Temperature(℃) | ﹣25～25 | ﹣25～25 |

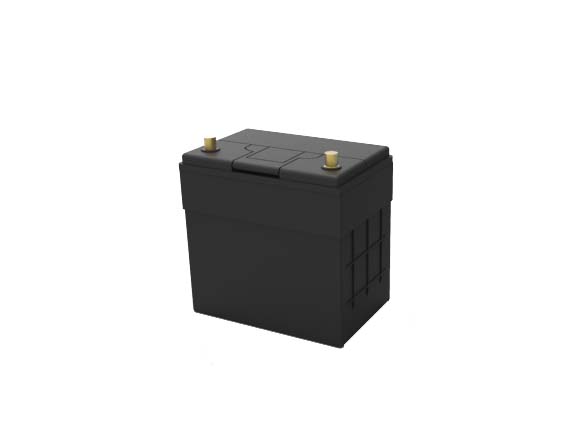

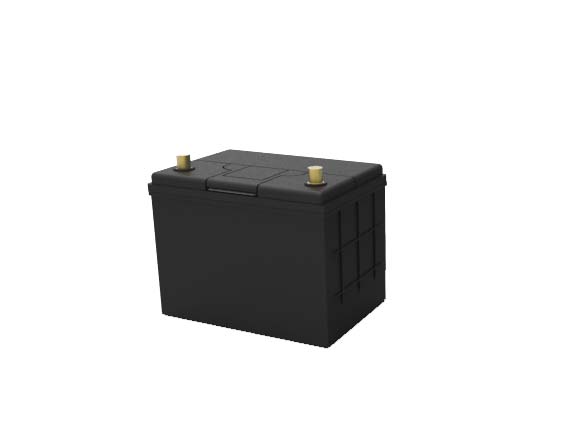

| picture |
|
|
